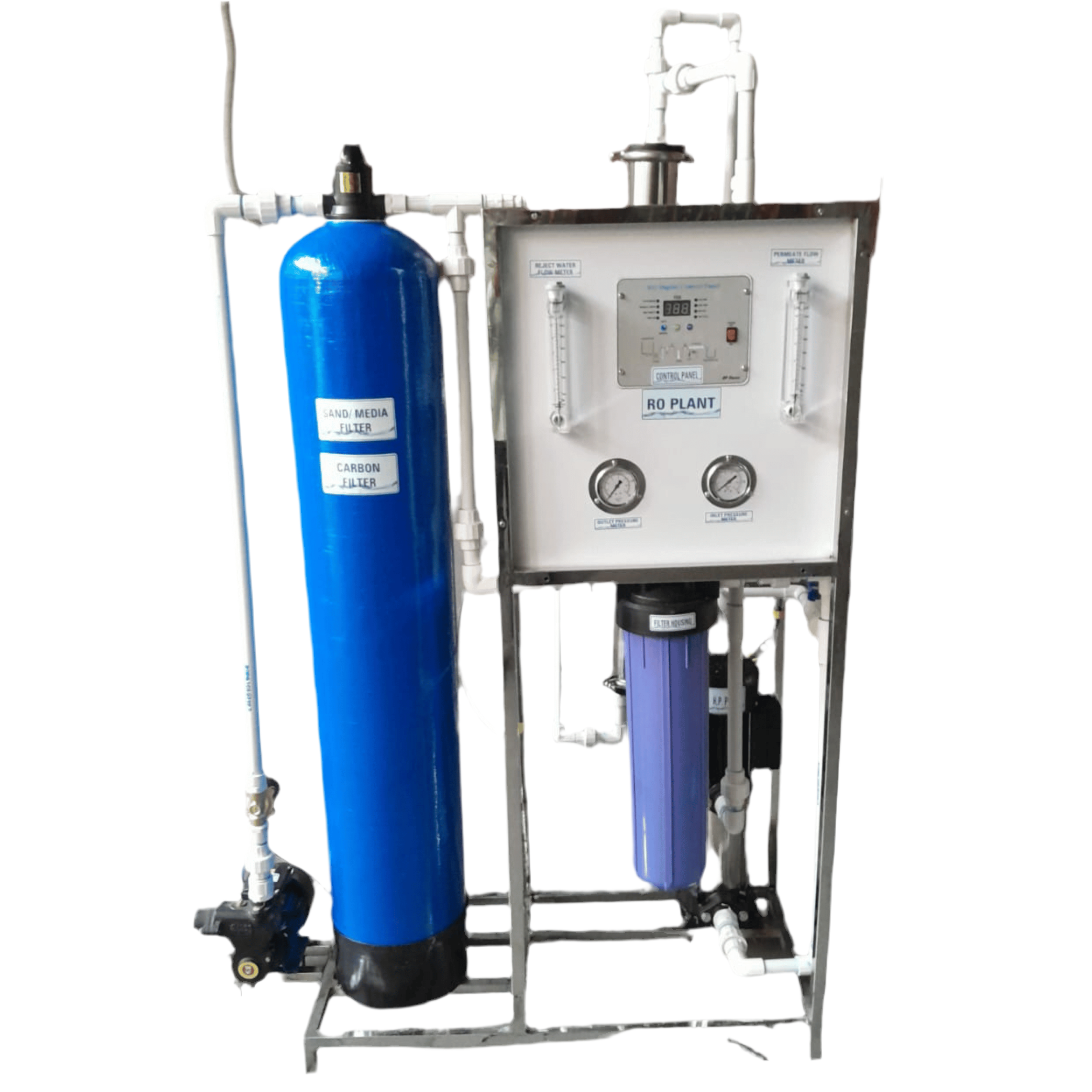

Ro water Plant 250 LPh

General Specification

1. Capacity: 250 liters per hour (LPH)
2. Type: Reverse Osmosis Water Treatment Plant
3. Application: Industrial, Commercial, or Residential
4. Feed Water Source: Borewell water, municipal water, or other sources TDS Less than 500 ppm
5. Output Water Quality:
   • TDS (Total Dissolved Solids): < 100 ppm (or as per requirement)
   • pH: 6.5–8.5
   • Free from bacteria, viruses, and other impurities

   ---

   Technical Specifications

   1. Pretreatment System

   • Sand Filter:
     • Material: FRP (Fiberglass Reinforced Plastic)
     • Size: As per flow rate
     • Function: Removes suspended particles, dirt, and turbidity.
   • Activated Carbon Filter:
     • Material: FRP
     • Function: Removes chlorine, organic impurities, and odor.
   • Antiscalant Dosing System:
     • Type: Dosing Pump (Metering type)
     • Function: Prevents scale formation on RO membranes.
   • Micron Cartridge Filter:
     • Size: 5 Micron
     • Function: Final stage filtration to remove fine particles.

   2. High-Pressure Pump

   • Material: Stainless Steel (SS304/SS316) as Per design
   • Power: Typically 2–3 HP (depending on design)
   • Pressure Range: 10–15 bar

   3. RO Membranes

   • Number of Membranes: Typically 1 membranes (depending on system design)
   • Type: Thin Film Composite (TFC)
   • Size: 4” × 40” or equivalent
   • Recovery Rate: 30–50%

   4. RO Pressure Vessel

   • Material: FRP/SS
   • Design: Accommodates RO membranes securely.

   5. Electrical Control Panel

   • Type: Automatic/Manual
   • Features: TDS meter, flow meter, pressure gauges, low-pressure and high-pressure switches, and interlock system.

   6. Piping and Fittings

   • Material: UPVC, CPVC, or( Stainless Steel optional  Extra cost )
   • Pressure Rating: As per system design

   7. Post-Treatment (Optional)

   • UV Sterilizer or Ozone Generator:  ( Extra cost )Eliminates bacteria and viruses.
   • Mineralization Unit:   (Extra cost ) Adds essential minerals for taste improvement (if required).

   ---

   Key Features

   • Automation: Semi-automatic or fully automatic operation.
   • Auto backwash :( Extra cost )Premium Range Optional
   • Energy Efficiency: Low power consumption.
   • Maintenance: Easy-to-maintain design with replaceable components.
   • Frame: Skid-mounted system for easy installation.

   ---

   Utilities Required

   • Power Supply: 230V AC, Single Phase or 3-Phase
   • Water Supply: Consistent feed water at required pressure
   • Pipe Line: inlet water & For reject water

   Dimensions

   • Depends on configuration but typically around 2–4 meters in length and 1–2 meters in width.

   ---

   Other Considerations

   1. Water Analysis Report: Customization based on feed water quality.
   2. Warranty: Typically 1 year for the complete system.
   3. Optional Accessories: Water softeners, pH adjusters, and flow meters.
