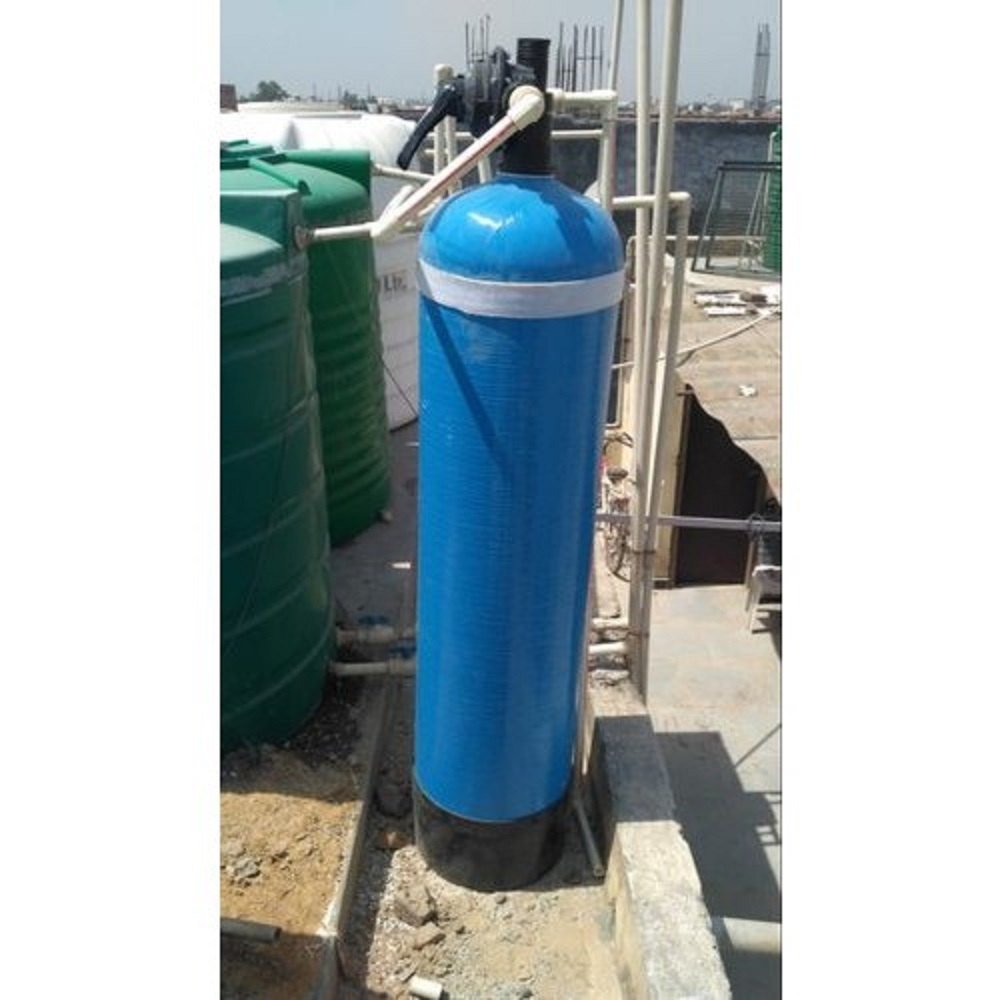

Sand Media Filter Manual

Raw Water Analysis for Sand Filter:

Before implementing a sand filter system, it's crucial to perform a comprehensive raw water analysis. This ensures the sand filter is correctly designed and optimized for the specific characteristics of the raw water. Below are the key parameters and tests typically conducted during the raw water analysis:

Key Parameters for Raw Water Analysis:

1. Total Suspended Solids (TSS):

   • Description: Measures the concentration of suspended particles in the water. These particles can be silt, clay, algae, organic material, or other impurities.
   • Typical Range: 10 – 100 mg/L in surface waters, but can be higher depending on the source.
   • Impact on Sand Filter: Higher TSS levels increase the load on the filter media, leading to frequent backwashing and maintenance. Pre-treatment may be required if TSS is too high.

2. Turbidity:

   • Description: Indicates the cloudiness of water caused by suspended particles. Turbidity is measured in Nephelometric Turbidity Units (NTU).
   • Typical Range: 1 – 50 NTU for raw water, depending on the source.
   • Impact on Sand Filter: High turbidity means more particulates for the sand media to remove, which could require adjustments in filtration rates or media size.

3. Particle Size Distribution (PSD):

   • Description: This analysis provides a breakdown of the size of suspended particles in the water, from fine colloids to larger particulates.
   • Typical Particle Sizes: Sand filters are effective for removing particles as small as 10-50 microns, depending on the media used.
   • Impact on Sand Filter: The particle size helps in selecting the appropriate sand grade. Fine particles may require finer sand or additional filtration stages.

4. pH:

   • Description: Measures the acidity or alkalinity of the water.
   • Typical Range: 6.5 – 8.5 for natural waters.
   • Impact on Sand Filter: pH affects the stability of colloidal particles. If the pH is too low or too high, chemical pre-treatment may be required to adjust the pH before filtration.

5. Total Dissolved Solids (TDS):

   • Description: Refers to the concentration of dissolved substances such as minerals, salts, and organic matter in the water.
   • Typical Range: 100 – 2000 mg/L, depending on the water source (e.g., surface water, groundwater, seawater).
   • Impact on Sand Filter: While sand filters are not designed for TDS removal, high TDS levels can indicate the presence of fine colloidal particles, which might affect filter performance.

6. Organic Matter (Biological Oxygen Demand - BOD/Chemical Oxygen Demand - COD):

   • Description: BOD and COD measure the organic load in the water, with BOD focusing on biodegradable organics and COD on total organic content.
   • Typical Range: 1 – 10 mg/L BOD for clean surface waters, higher in polluted waters.
   • Impact on Sand Filter: High organic loads can clog the filter media and support microbial growth. Pre-treatment, such as coagulation or flocculation, may be necessary.

7. Iron and Manganese:

   • Description: These metals can be present in raw water, especially in groundwater. Iron and manganese can form insoluble precipitates that could clog the filter.
   • Typical Range: Iron: 0.1 – 1.5 mg/L; Manganese: 0.01 – 0.5 mg/L.
   • Impact on Sand Filter: Sand filters can remove some iron and manganese, but if concentrations are high, an oxidation pre-treatment (e.g., aeration or chemical oxidation) may be needed.

8. Algae and Microbial Content:

   • Description: The presence of algae, bacteria, and other microorganisms is common in surface waters.
   • Typical Range: Variable depending on water source and season.
   • Impact on Sand Filter: Algae can clog the filter media and require frequent backwashing. Disinfection pre-treatment, such as chlorination, may be necessary to control microbial growth.

9. Hardness (Calcium and Magnesium):

   • Description: Refers to the concentration of calcium and magnesium salts in the water.
   • Typical Range: 50 – 500 mg/L as CaCO₃.
   • Impact on Sand Filter: Hard water does not directly affect sand filter performance, but if scale-forming compounds are present, it could lead to fouling in other parts of the system.

10. Oil and Grease:

    • Description: The presence of oil, grease, or other hydrophobic substances in the water, often found in industrial or wastewater.
    • Typical Range: Trace to 50 mg/L, depending on the water source.
    • Impact on Sand Filter: Oils and greases can coat the sand media and reduce filtration efficiency. Pre-treatment with oil-water separators or chemical treatments may be required.

Steps for Water Analysis:

1. Sampling: Collect representative water samples from the source to ensure that the analysis reflects actual conditions. Ensure the sample is stored and handled properly to prevent contamination.

2. Laboratory Testing: Use laboratory instruments, such as spectrophotometers, turbidimeters, and particle size analyzers, to measure the key parameters outlined above.

3. Analysis of Results: Based on the test results, determine the type and size of sand media to use, filtration rate, and any necessary pre-treatment or post-treatment stages.

Interpreting the Results for Sand Filter Design:

• Low TSS and Turbidity: A standard sand filter should suffice without the need for additional pre-treatment.
• High TSS or Turbidity: A coarser sand media may be necessary, or pre-filtration systems like sedimentation or coagulation might be required to reduce the load on the sand filter.
• High Organic Matter: Chemical pre-treatment or multi-stage filtration may be necessary to prevent clogging and microbial growth.
• Presence of Iron and Manganese: Oxidation pre-treatment may be required to convert dissolved metals into filterable particles.
• Algal Presence: Pre-treatment with chlorination or UV disinfection may be needed to control algae and microbes

Benefits:

1. Efficient Removal of Suspended Solids:

   • Sand media filters effectively trap and remove particulate matter, including sediments, silt, organic debris, and algae, ensuring clean water for downstream processes.

2. Low Maintenance:

   • With simple backwashing procedures, the sand filter can maintain efficiency over long periods with minimal manual intervention.

3. Cost-Effective:

   • Sand filters are a cost-effective solution for large-scale filtration due to their low operational and maintenance costs. They don’t require expensive consumables, making them ideal for high-volume water treatment.

4. Longevity:

   • The sand media and filter components are durable, ensuring a long operational lifespan if maintained properly through regular backwashing and cleaning.

5. Energy Efficient:

   • Sand media filters operate at relatively low pressures and energy requirements, making them energy-efficient compared to alternative filtration methods.

6. Scalable:

   • Available in various sizes, sand filters can be scaled up or down to meet specific application needs, whether for residential, commercial, industrial, or agricultural purposes.

7. Environmental Sustainability:

   • Using natural materials like sand as the filtration medium makes the process environmentally friendly. Furthermore, backwashing cycles are designed to reduce water waste.
